High-performance insulation for process areas demanding heat tolerant insulation

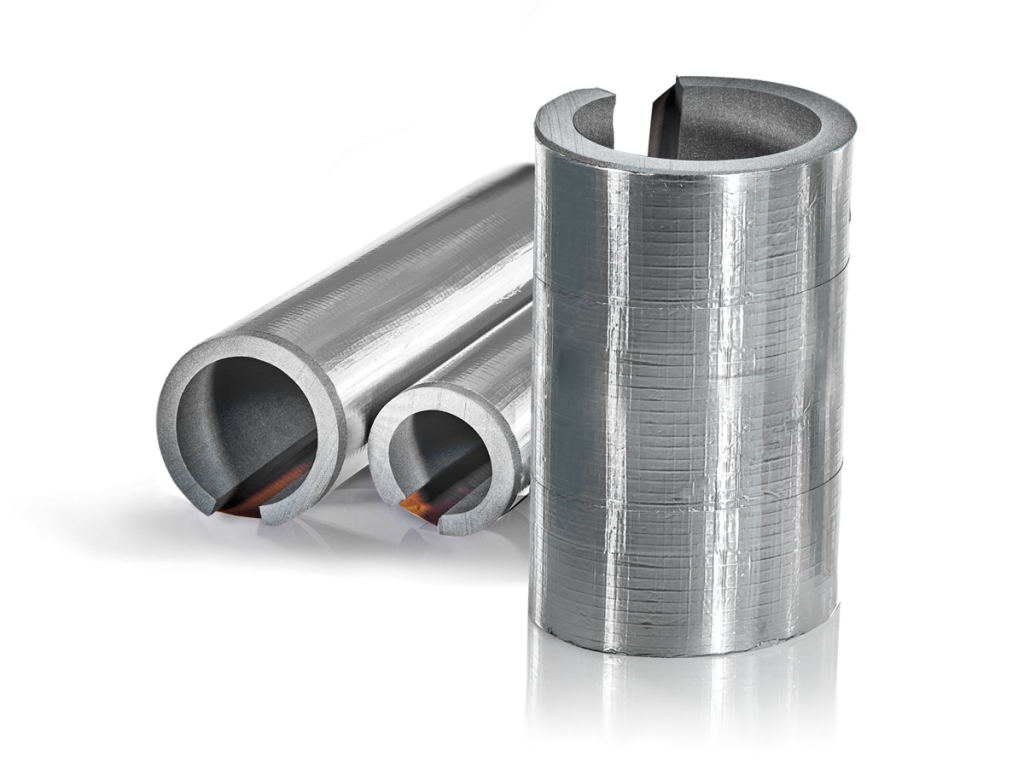

Industrial insulation designed for high-temperature processing environments, T-FIT® Process is stable at up to +392oF – (EN13501-1 fire certification and EN14707 temperature resistance) making it the insulation of choice for industrial process areas such as steam lines, food processes, energy, electronic, photonic and chemical applications. Integral aluminum cladding offers the highest level of physical protection around hot pipe works.
Safest: T-FIT Process’ closed-cell foam structure is highly resistant to bacteria and mold growth. It meets and exceeds the industry-standard ASTM G21-15 and is also fiber-, dust, and particulate-free.
Cleanest: Produced from high-grade Polyamide 6 Nylon using Zotefoams’ unique high-pressure autoclave, clean technology process, T-FIT Process’ closed-cell structure is highly resistant to bacteria and mold growth. It meets and exceeds the industry-standard ASTM G21-15 and is also particulate-, dust-, fiber- and near zero VOC free.
Most flexible: Because T-FIT Process is UV-resistant, insulation can be installed indoors, undercover or outside with no loss of insulating performance. The crosslinked structure easily withstands physical compression and other rigors associated with installation processes during construction work and while in service.
Simplest: With an operating range of -4oF to +392oF, T-FIT Process is suitable for insulating both chilled and hot processing applications, which means a single insulation material can be used throughout the installation. For fast, tool-free installation the robust range includes products that can insulate pipework that contains straight runs, elbows and T-sections that are easy to open and close for inspection. With an ultra-slim 05” and 0.25” profile, high-performance insulation is possible in even the tightest spaces within the industrial processing or manufacturing environment.
Most cost-effective: Reduced installation cost, smaller footprint, lower operating costs and a reduced risk of cross-contamination — add a long maintenance-free service life to these benefits the lowest Total Cost of Ownership of any high-performance process insulation system.
Previous
Next
Installation videos
T-FIT Process Elbow
T-FIT Process Flange
T-FIT Process Reducer Tee
T-FIT Process Reducer
T-FITProcess Straight
T-FIT Process Tee
T-FIT Process Valve Box
Download Brochure
Product Information sheet
Application profile sheets
